제품 상세 정보:
|
| DN: | Φ11 | 힘: | 8-8.5W |
|---|---|---|---|
| Amb. 온도: | 0-50℃ | 압력: | 0.2-8bar |

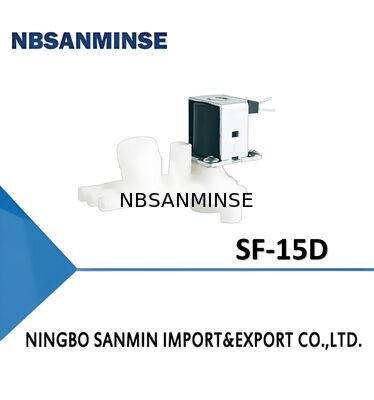

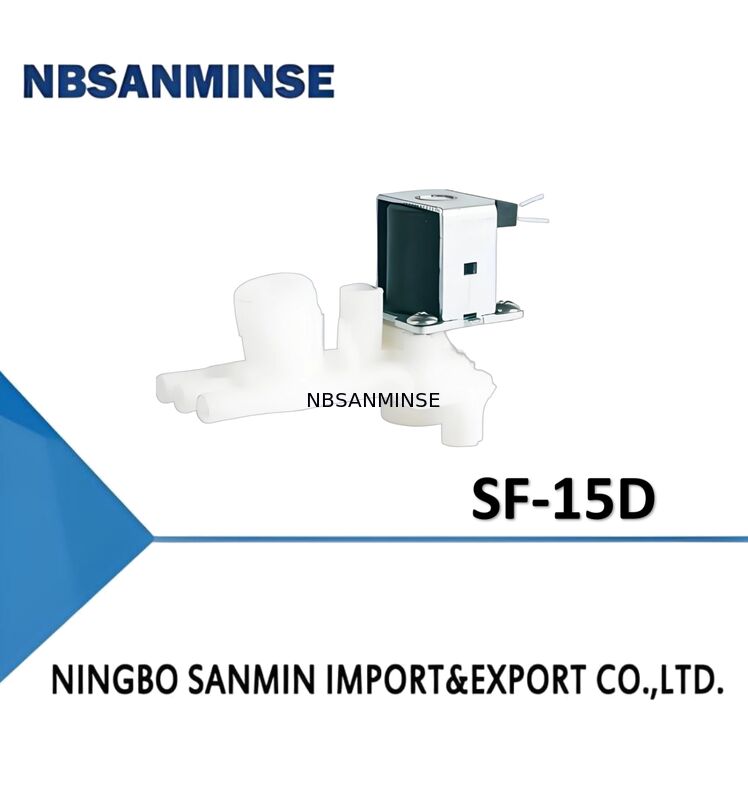

SF-15D(Technical Parameters):
| Form | Normally closed |
| Pressure | 0.2-8bar |
| Working medium | water |
| Fluid Temperature | 0-100℃ |
| Amb. Temperature | 0-50℃ |
| Power | 5W |
| DN | Φ11 |
| Voltage | DC12V |
| Connection | (Cannula) |
(2/2way valveN.C.)

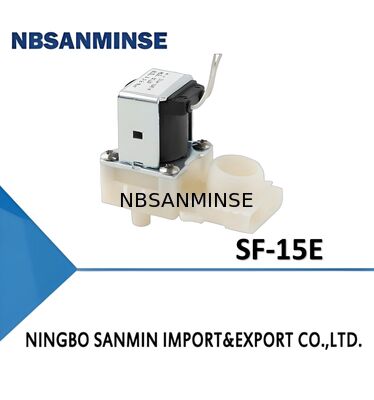

SF-15E(Technical Parameters):
| Form | Normally closed |
| Pressure | 0.2-8bar |
| Working medium | water |
| Fluid Temperature | 0-100℃ |
| Amb. Temperature | 0-50℃ |
| Power | 5W |
| DN | Φ11 |
| Voltage | DC12V |
| Connection | (Cannula) |
(2/2way valveN.C.)

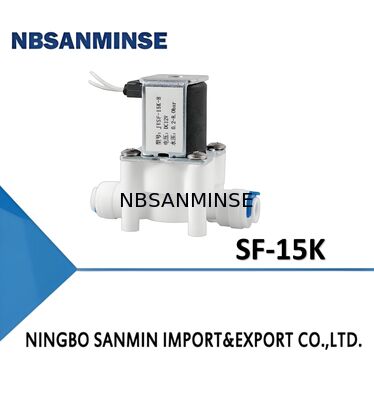

SF-15K(Technical Parameters):
| Form | Normally closed |
| Pressure | 0.2-8bar |
| Working medium | water |
| Fluid Temperature | 0-80℃ |
| Amb. Temperature | 0-50℃ |
| Power | 8-8.5W |
| DN | Φ11 |
| Voltage |
DC12V, DC24V, DC36V, AC110V,AC120V, AC230V |
| Connection | (Cannula) |
(2/2way valveN.C.)
SF-15T(Technical Parameters):
| Form | Normally closed |
| Pressure | 0.2-8bar |
| Working medium | water |
| Fluid Temperature | 0-80℃ |
| Amb. Temperature | 0-50℃ |
| Power | 8-8.5W |
| DN | Φ11 |
| Voltage |
DC12V, DC24V, DC36V, AC110V,AC120V, AC230V |
| Connection | (Cannula) |
(2/2way valveN.C.)
