제품 상세 정보:
|
| 재료: | 알류미늄 | 작동 압력: | 0.12-0.8(Mpa) |
|---|---|---|---|
| 근무온도: | 5-150℃ | 피스톤 속도: | 75-800mm/초 |
| 쿠션: | 양쪽 끝 쿠션 조절 가능 | 클램핑력: | >1500(N) |
| 강조하다: | 15 Bar Proof Pressure Pneumatic Air Cylinder,10 Bar Pneumatic Air Cylinder,ISO 21287 Pneumatic Air Cylinder |
||
| Type: | Features: |

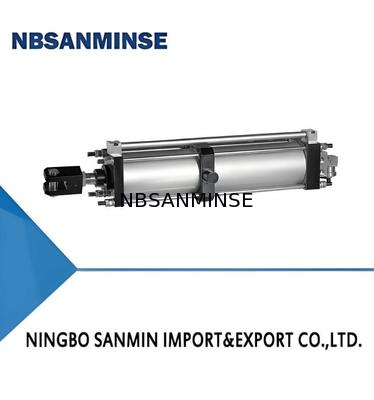

| QG-1/QG-2 | cylinders with valves,fitted with throttle,speed regulation,buffer mechanism,are of compact structure, easy of use, resistant to high temperature, exerting great striking impact and highly reliable.These two varieties are mainly used in aluminum factory for material feed and aluminum tapping of the electrobath tank and arenecessary pneumatic elements in automated production of an aluminum factory |
| QG-22 | This breaking cylinder have special mechanical device to avoid drop suddenly.Features automatically air pressure transfer between high pressure and lowpressure, with singnal feed back system.When the low pressure break the shell successfully,the sensor send the singnal which make the rod extension. If not,the sensor do not send the singnal. Then system willtransfer low prossure to high pressure until thecy linder breaktheshel.If it can not break the shell the system will alarm |
| QG-3/QG-4 | Those are light anti-falling cylinders without valves fitted with auto shaft-pin locking device thatprevents piston rod from falling by itself.when the cylinder is vertcally in staled and air supply cut off the pison will not fall by itself thank to the locking device and this well meets the needs of the electrobath tank's operation. |
| QG-5/QG-6: | theyarcylinderswihvalvsandantifalingpis,basedonteQG-- cylinder design these cylinders have shaft pin locking device that prevents the cylinderpistonrod from falling.When the piston rod is are tracted state the shaft pin, driven by the resilience,ylides into the groove at the end of the pistonrod.otpin locking device,there by effectively preventing the ramming head yetting into electrolyte when power/compressed air supply is off. |
|
QG-1a/QG-2a QG-5a/QG-6a |
aremodified types of QG-1/QG-2/QG-5/QG-6, the valves being changed to 2position5way shut type directional valves(K25JK-15) betersuited to the actual operation practice in aluminum industry. |
