제품 상세 정보:
|
| 정격전압: | DC 24V | 유지 전류: | 0.32 |
|---|---|---|---|
| 전력(W): | 7.7 | 근무온도: | 5-40 (() |
| 작동 압력: | 0.2-0.7(MPA) | ||

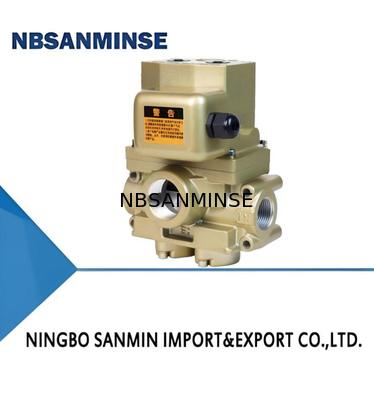

| 강조하다: | double solenoid valve for press machine,pneumatic double valve with warranty,K23JSD-HSCO series pneumatic solenoid valve |
||
① Medium: Air
② Circuit Form: 2/3 Way
③ Valve Body Form: Globe Type
④ Dual Valve
⑤ Control Form: Electric Control
⑥ Connection Method: Pipe Connection
⑦ Nominal Diameter: 15SC2, 20G1/4, 25G1, 32G1-1/4, 40 G1-1/2
⑧ Product Model: HSV Series
⑨ Rated Voltage: AC100V, AC110V, AC200V, AC220V, DC-24V
| Type | Nominal Diameter | IN | OUT | EX | M | N | L | G | H | F | E |
| K23JSD-L15HSCO | 15 | G1/2 | G1/2 | G3/4 | 80.5 | 154 | 183 | 128 | 35 | 130 | 65 |
| K23JSD-L20HSCO | 20 | G3/4 | G3/4 | G3/4 | 80.5 | 154 | 183 | 128 | 42 | 130 | 65 |
| K23JSD-L20HSCO | 20 | G3/4 | G3/4 | G1-1/4 | 102 | 165 | 205 | 140 | 52 | 130 | 72 |
| K23JSD-L25HSCO | 25 | G1 | G1 | G1-1/4 | 102 | 165 | 205 | 140 | 52 | 130 | 72 |
| K23JSD-L32HSCO | 32 | G1-1/4 | G1-1/4 | G2 | 125 | 259 | 295 | 217 | 77 | 128 | 110 |
| K23JSD-L40HSCO | 40 | G1-1/2 | G1-1/2 | G2 | 125 | 259 | 295 | 217 | 77 | 128 | 110 |
| Valve Type | K23JSD-HSCO | K23JSD-HSCO | K23JSD-HSCO | K23JSD-HSCO | K23JSD-HSCO | K23JSD-HSCO |
| Rated Voltage | AC100V 50HZ | AC100V 60HZ | AC110V 60HZ | AC200V 50HZ | AC200V 60HZ | AC220V 60HZ |
| Starting Current | 0.29 | 0.25 | 0.27 | 0.14 | 0.12 | 0.13 |
| Holding Current | 0.15 | 0.12 | 0.15 | 0.08 | 0.06 | 0.07 |
| Power Consumption (W) | 8 | 7 | 9 | 8 | 7 | 9 |
| Valve Type | K23JSD-HSCO |
| Rated Voltage | DC 24V |
| Holding Current | 0.32 |
| Power Consumption (W) | 7.7 |
