제품 상세 정보:
|
| 모델: | SMF19 | 크기: | 1pc 2pcs 5pcs |
|---|---|---|---|
| 인증: | ce | 스위치 유형: | 압력 스위치 |
| 재료: | 알루미늄 합금 | 실: | G npt |
| 강조하다: | 에어 컴프레서 펌프 압력 스위치,1/4 G NPT 압력 스위치,신뢰할 수 있는 제어 압력 스위치 |
||
Ex : ON :1Bar OFF:2Bar =NC
ON :2Bar OFF:1Bar =NO
ON :-0.9Bar OFF:-0.65Bar =NO
ON :-0.65Bar OFF:-0.9Bar =NC

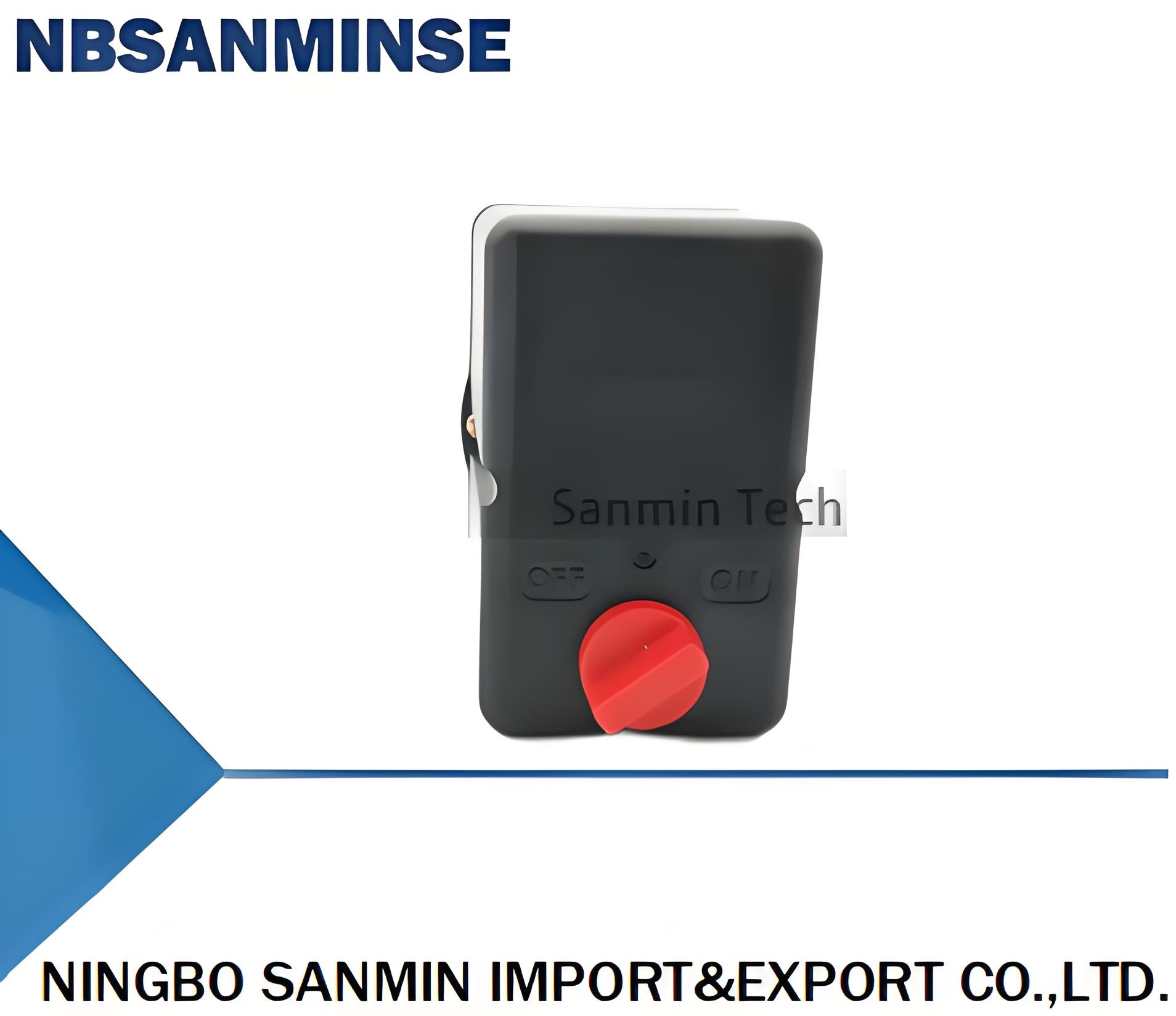

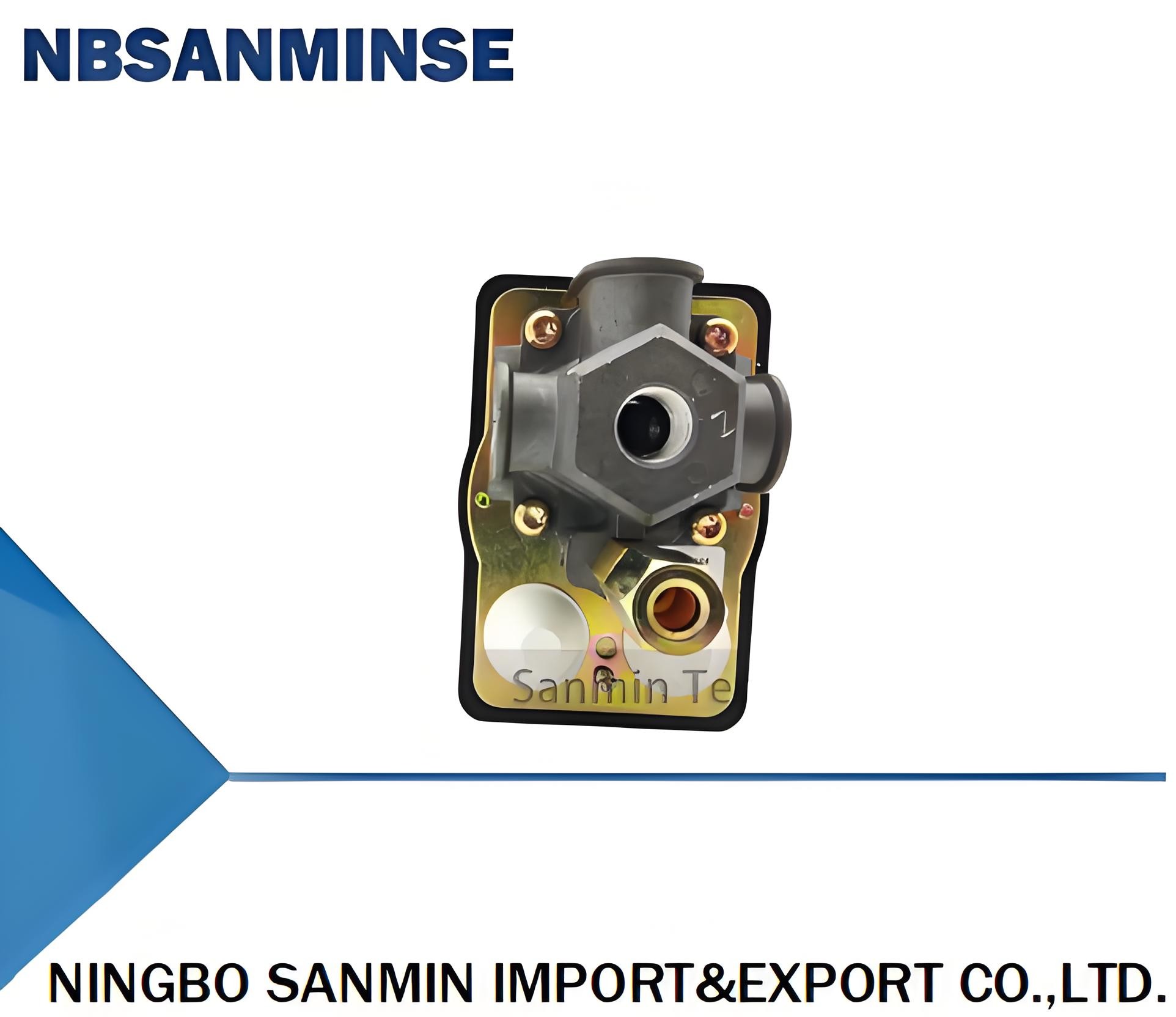

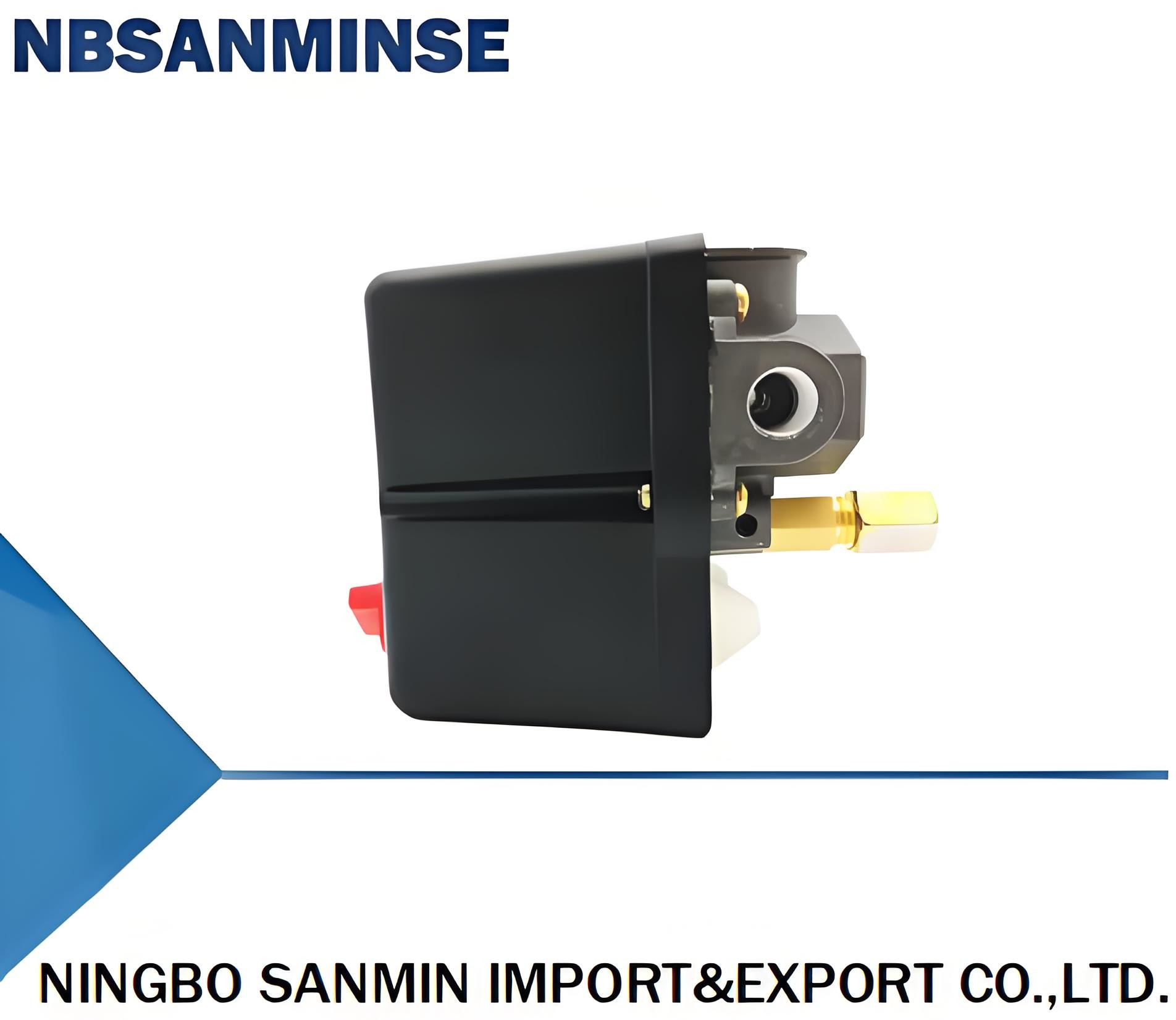

SMF19 pressure switches can also be used to regulate the tank pressure between two preset values on onephase electrically driven air compressors. They are available with an unloader valve, which prevents compressors from starting under load, and it is available with an On-Off knob for manual cut off the compressor.
|
MODEL
|
Media
|
Unloader
Valve
|
Operating
Pressure Range(bar)
|
Factory Setting
(bar)
|
Differential
(bar)
|
Electrical Rating
|
Contact Arrangement
|
|
SMF19
|
Air
|
with
|
1-6
|
1-3
|
2-4
|
16A ,25/250VAC
|
NC
|
|
2-11
|
1.4-3.5
|
6-8
|
|||||
|
5-14
|
1.8-4.0
|
8-10
|
